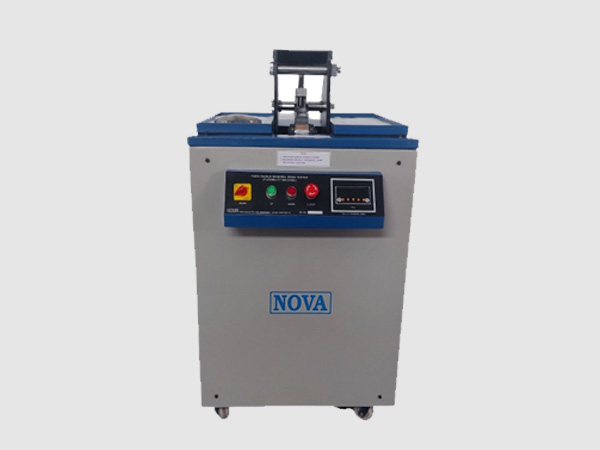

The instrument is designed for Fixed Radius Bending suitable for bending of sample of size 200mm [L] x 25mm [W] x 25mm [T] (including coating) OR as per your requirement with different Radius Mandrels.
| FEATURES | SEMI-AUTOMATIC Model | AUTOMATIC Model |
| As per Canadian Standard Z245 20 02 and others | ||
| Hydraulic System | ||
| Suitable for up to 25mm thick sample with coating | ||
| Centre portion Bending of the sample (Newly Design) | ||
| Bending towards backside which ensure User safety | ||
| Single / 3 Phase Motor | ||
| Heavy Duty Framework Body | ||
| Castor Wheel for Movability | ||
| Anti-Vibration Pad | ||
| Emergency Stop | ||
| Two Free Mandrel | 140mm & 220mm radius | 140mm & 220mm radius |
| Display Type | DIGITAL | TOUCH SCREEN |
| Operating Type | Manual Push Button | Automatic One Touch operation – starting to End with Time & Pressure - load information |
| Safety Lock | Sensors + Safety Cover | Sensors + software monitoring Pressure load Control + Safety Cover |
| Pick Pressure - load Measurement | NO | |
| Built in Timer to validate Test Time completion as per Standard | NO | |
| Timer Calibration Certificate | NA | |
| Pressure Graph applying on Sample | NO | Optional |
| Optional available Mandrel: 90mm, 100mm, 110mm, 120mm, 125mm, 130mm, 135mm, 140mm, 145mm, 150mm, 155mm, 160mm, 170mm, 180mm, 190mm, 200mm, 220mm, 225mm, 250mm, 300mm, 350mm, 400mm, 450mm, 500mm, 600mm,700mm, 800mm, 950mm, 1000mm,1100mm,1200mm | ||
