Gel Timer - Nova Instruments Pvt. Ltd.

The GEL TIMER heating block is made out of Thick Alloy duly machine harden & grinded / polish with Pt-100 sensor. The heating block is fitted with specially designed heater. The Gel Plate will be supported by heavy angles. The control system consisting of PID Controller, Mains ON/OFF switch, SSR & Electronic circuit etc.

Features

Comply with the Standards
Uniform Surface Temperature
Specially designed Heater
Specially Developed Alloy Plate
Suitable For Resin Test – Liquid / Powder ETC

Specification

SPECIFICATION	COMPACT CANADIAN	COMPACT ISO	DELUXE CANADIAN	DELUXE ISO	DELUXE COMBINE ISO+CANADIAN
Size of Gel Plate : 150 x 150 mm approx.					150 x 200mm approx.
Thickness of Top Plate : 25/ 30 mm approx.. as per require Standard
Temperature Range : R. T. + 15° C above ambient to 250°/300° C surface Temp as per required standard.
Resolution : 0.1° C.
Control Accuracy : +/- 3° C or better.
Surface Temperature Uniformity : Within +/- 1% FSD or +/- 3°C or better within 60 mm x 60 mm surface area maximum from centre. [Overall 120 x 120mm].		-		-	within 60 mm x 60 mm [L] & 85mm x 85mm [W] surface area maximum from centre. [Overall 120 (L) x 170mm (W)].
Cavity as per ISO Standard	-		-
Overall Size : As required
Complete with … 1. Battery Operated Digital	STOP WATCH	STOP WATCH	TIMER BUILT-IN	TIMER BUILT-IN	TIMER BUILT-IN

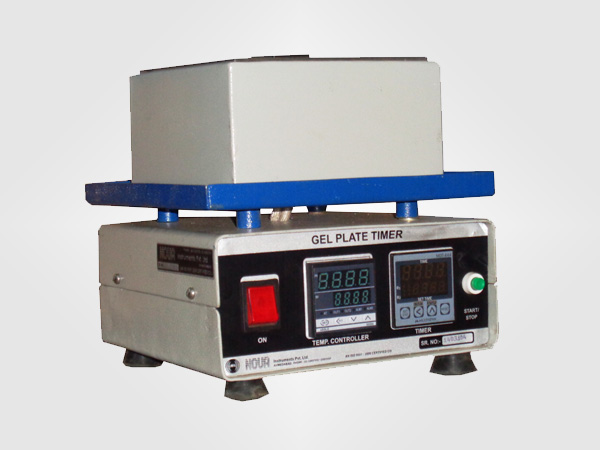

Gel Timer Canadian Deluxe

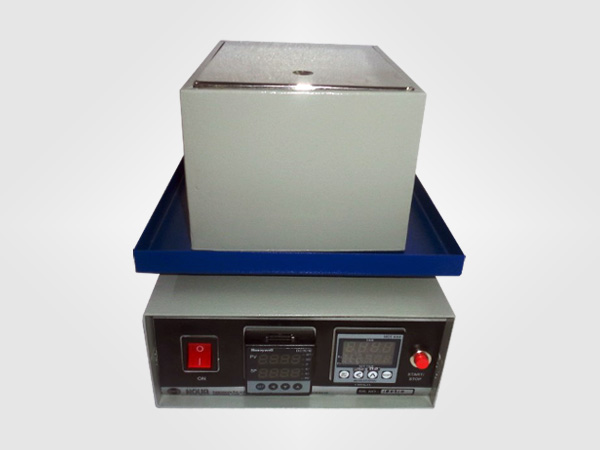

Gel Timer Canadian ISO Combined

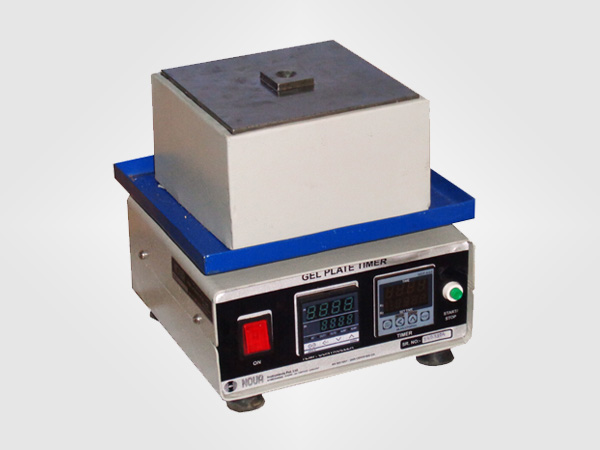

Gel Timer ISO Deluxe

Gel Timer Comact ISo

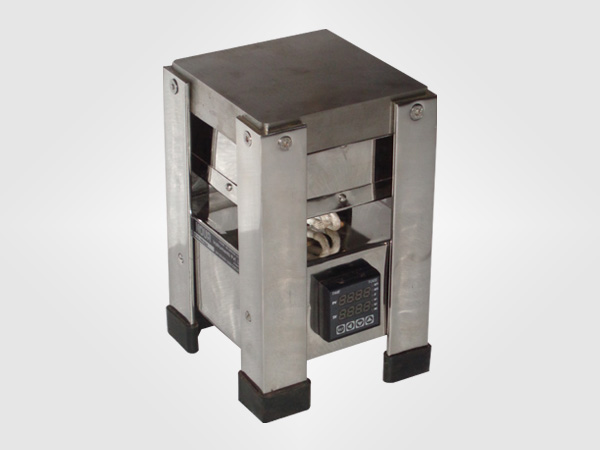

Gel Timer Compact Model Canadian
