High, Medium & Low Temperature CD Test Apparatus
HMI - Touch Screen Model

"NOVA" HIGH TEMPERATURE CD CELL SYSTEM – HMI TOUCH SCREEN MODEL

NOVA-Digital PLC based HMI Touch screen High Temperature CD Cell Test System is specifically designed to cater the needs for Laboratory, R & D, Quality Control, Analytical and Corrosion Testing Application.

The set up is consisting of Heating system capable of controlling, Temperature of SAMPLE PLATE and ELECTROLYTE SOLUTION at desired set temperature individually and control with the use of “NOVA” Cryo Water Circulation Bath System

The glass cell will be pressurized cell having following technical specification.

  • Rim at the bottom for clamping.
  • Volume of the Cell : 300mm approx
  • Dia of the Cell: 70/75mm approx
  • Glass coil provided for circulation of hot or cold water to maintain electrolyte solution temperature at 90/95˚C ±2°C or better.
  • Arrangement to feed water to compensate evaporated water and to maintain the electrolyte solution level. With Built-in circulation Peristaltic system.
  • Suitable silicone tube for water circulation.
  • Top portion having 4/5 neck suitable to fix platinum electrode, calomel electrode, temperature sensor/thermometer and condenser/water feed arrangement
  • The system is suitable to maintain plate temperature 120°C and electrolyte solution at 90/95˚C. ± 2˚C or as require set temperature.
  • Cell provided with……
    - Temperature Sensor – 1 No. for electrolyte solution
    - Condenser/Water feeding arrangement – 1 No

    • The above system will be provided with control panel with PLC HMI based temperature indicator cum controller to control and monitor electrolyte solution.

    Suitable for sample size: 100mm x 100mm

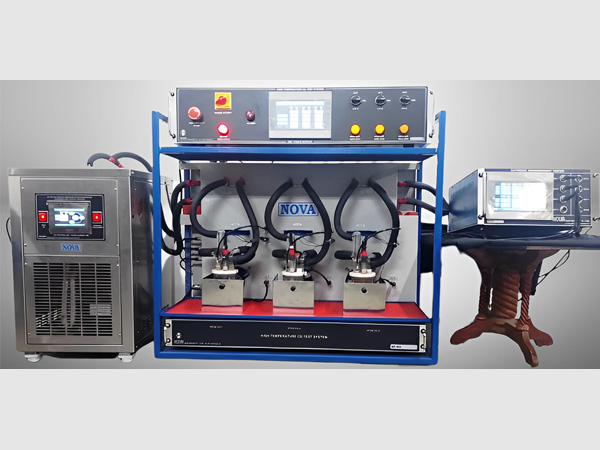

    High-Temprature-CD-Cell-System

    High Temprature CD Cell System

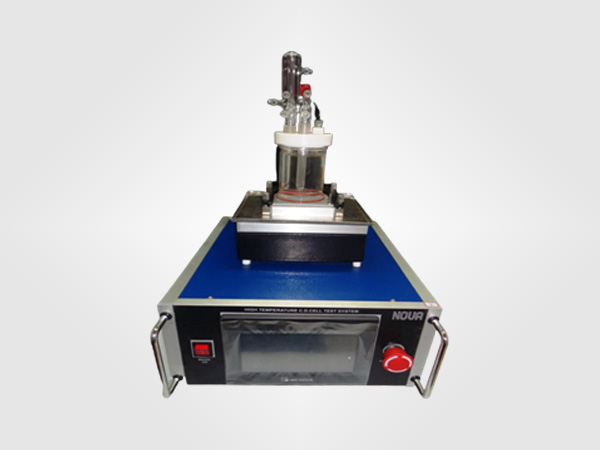

    High-Temperature-CD-Test-Apparatus

    High Temperature CD Test Apparatus

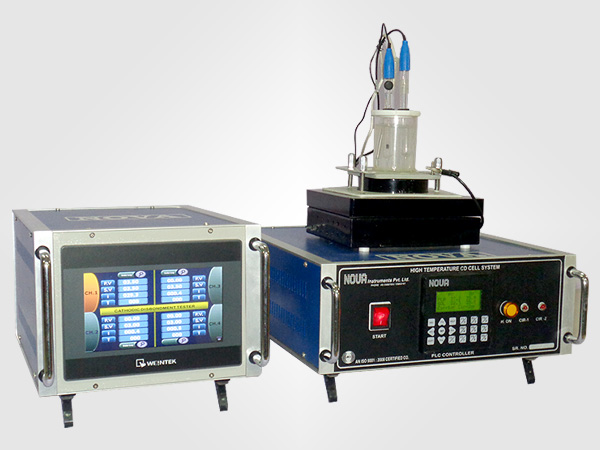

    High-Temperature-CD-Test-Apparatus

    High Temperature CD Test Apparatus

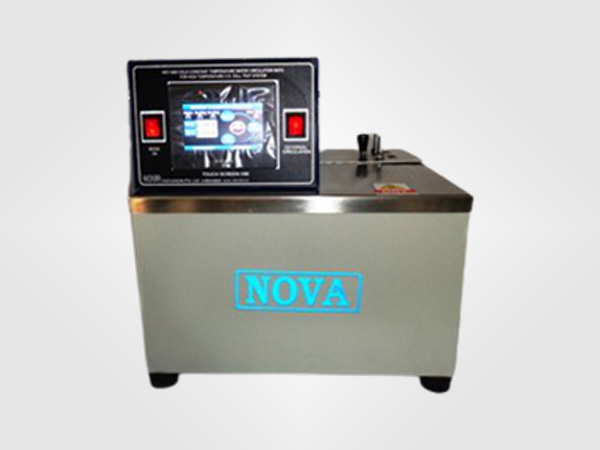

    CRYO-Circulation-Bath

    CRYO Circulation Bath

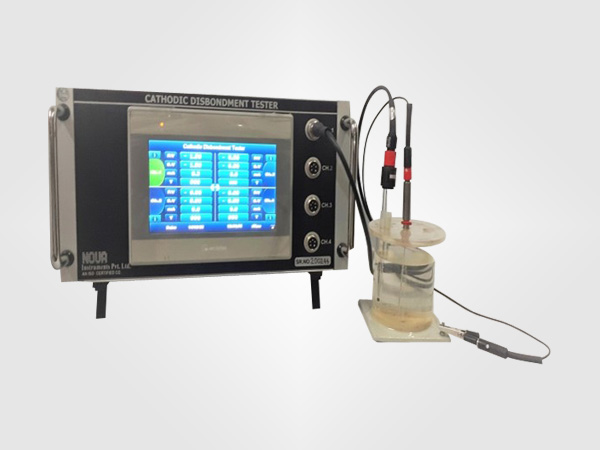

    Cathodic-Disbondment-Tester-4-Channels

    Cathodic Disbondment Tester 4 Channels

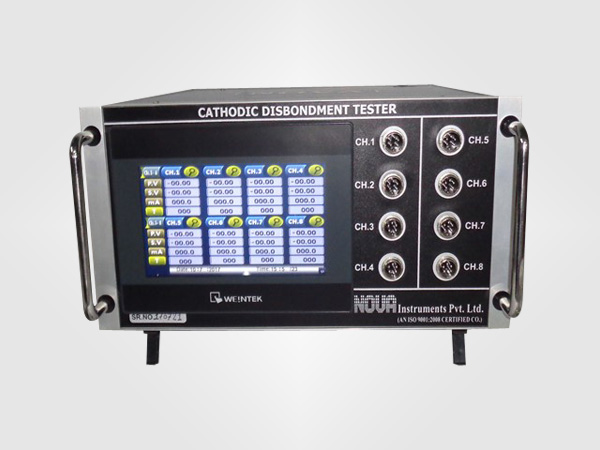

    Cathodic-Disbondment-Tester-8-Channels

    Cathodic Disbondment Tester 8 Channels

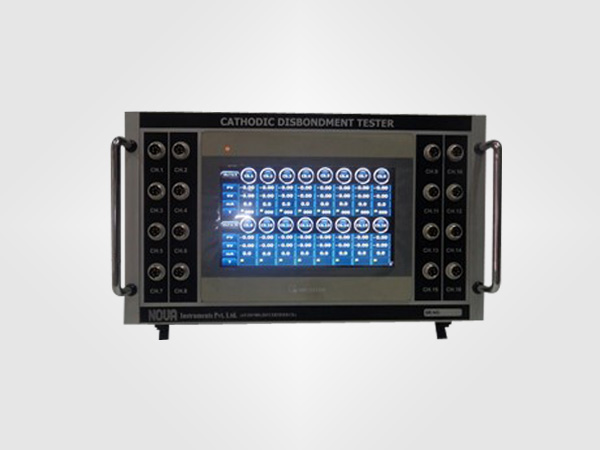

    Cathodic-Disbondment-Tester-16-Channels

    Cathodic Disbondment Tester 16 Channels

    Salient Features

    • HMI Touch screen display and setting
    • PLC based control
    • Fully Automatic
    • Easy to operate
    • High and Reproduceable accuracy
    • Uniform heating and control
    • Sensitive temperature sensors PT-100 type
      1. Plate temperature sensor
      2. Electrolyte solution temperature sensor
      3. Heater block temperature sensor (FOR SAFETY PURPOSE)
    • Specially designed and machined heating block
    • Spring loaded sample locking device
    • Emergency stop switch
    • Provision for 24V DC output at back side of the control panel to use 24V DC cooling fan to cool down the sample plate.[Applicable for Elevated high temperature test only]
    • Provision for software up gradation through BNC connector [for factory use only]

    Technical Specification

    • System is suitable to set and maintain various test at different temperature as mention in application
    • Heater capacity : 500/650 Watts approx
    • Temperature Resolution : 0.1°C
    • Control Accuracy : ±3°C or better
    • Built in peristaltic circulating pump for condenser and cooling coil
    • Data Logging Facility
    • Live graph
    • History details
    • Timer setting
      1. In hours
      2. In Minutes
      3. In Days
    • Menu driven display for PLC
    • Power Supply 220/230V Single Phase 50/60 Hz

    High Temperature C D Test

    • Plate Temperature Control 120°C to 140°C.
    • Electrolyte Solution Temperature Control 95°C ± 2°C.
    • As per NF A 49-711 and equivalent standard.

    Medium Temperature C D Test

    • Plate Temperature Control: 90°C to 120°C.
    • Electrolyte Solution Temperature Control: 65°C ± 2°C.
    • As per AS 3862, ASTM G42, CSA Z 245.20, ISO 21809-2 and equivalent standards.

    Low Temperature C D Test

    • Plate Temperature Control: 65°C to 95°C.
    • Electrolyte Solution Temperature Control: 23°C ± 2°C with use of Cryo Circulating Bath (Cryo Bath is optional).

    Optional Accessories Compatible with Above Unit

    Cryo Circulation/Hot & Cold Circulation Bath

    • For Suitable C.D test at 23°C ± 2°C
    • Below ambient temp. as per application upto 5°C
    • Available in diff. Capacity–5 litre, 10 litre, etc.

    Cathodic Disbonding Test Apparatus(-1.5 V or -3.5 V)

    • Constant Voltage as per CAN/CSS 245.20 Standard
    • Fully Automatic, set voltage, Current Display provision
    • Models available 1 Channel, 2 channel, 4 channel & 8 channel
    • Data Logging provision

    Other Products

    • Gel Plate / Gel Timer / Curing Plate as per Canadian Standard & ISO Standard
    • Cathodic Disbondment power supply for 2, 4, 8 & 16 test channel
    • Indentation Bath
    • High, Medium & Low Temperature Cd Test Apparatus
    • Hot Chamber With Cable Management System Suitable For Cd Test At Higher Temperature Up To 80/90℃.
    • Cool Chamber with Cable Management System suitable for CD test
    • Fixed Radius Mandrel Bend Test Machine
    • Dipping Unit-Single & Double Dipping with Fluidized Bed
    • Sand Bath
    • Refrigerated Instruments / Deep Freezer -20°c & -40°c (Vertical & Horizontal)
    • Vicat Softening Point Tester
